Exercise 2: Document Intelligence (20mins)

One of the biggest challenges in Nintech’s supplier management process is keeping track of and processing business licenses. Nintech tracks these licenses manually on separate excel spreadsheets, and when suppliers email in new certificates, it is often overlooked and results in compliance risk. In this exercise, we will automate this process by using Document Intelligence to process the licenses using machine vision.

In the interest of time, several sections of the Supplier Management custom app has already been built for you. For context, a “Business License” table was created to store the business license records.

Creating an email flow to process attachments

The first part requires us to get the attachments to process via emails from suppliers.

1. Under All, search and navigate to App Engine Studio



   App Engine Studio is a low-code visual development platform that allows citizen developers to create business-critical workflow apps in a complete low-code experience.

2. In the My recent apps section, click Supplier Management

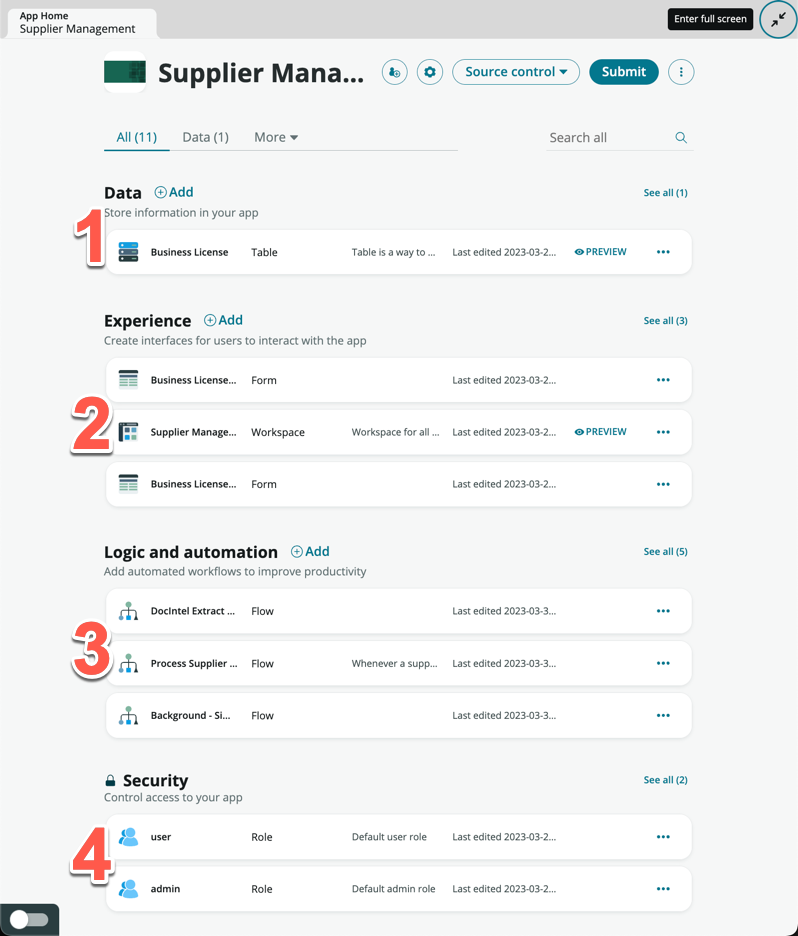

3. If this is your first time within App Engine Studio, have a quick look at the 4 major sections on the App Home tab

   Reference	Section	Description
   1	Data	This is where you will add data tables to your custom application, either by creating a brand new table, importing a spreadhseet, extending an existing table, from a PDF file, and even through a data integration. A Business License table has already been created for you.
   2	Experience	Create access to the custom tables with different experiences, such as via workspaces, catalog items, mobile applications and even standalone portals. Notice that a Supplier Management Workspace was created for you, and you will use this in the final testing exercise
   3	Logic and automation	Arguably where you will spend the most time during custom application creation. Add Flows, Process Automations, Email notifications and more in this section. You will be building on top of some flows that have been created
   4	Security	Security is where you will create custom user roles for the application scope. This will not be covered in the context of this lab.

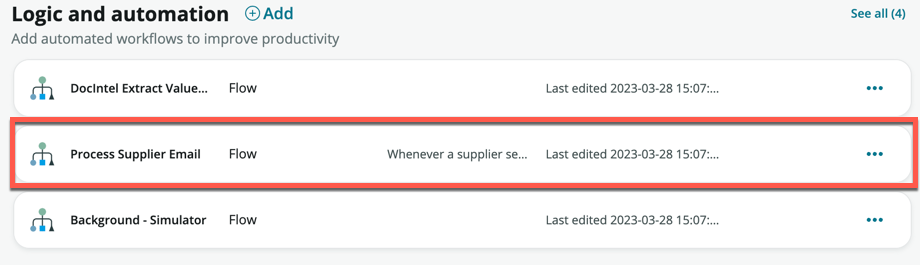

4. Under Logic and Automation, click Process Supplier Email



   A portion of this flow was already built to create a new Business License record on the custom table. We now have to complete it to shift email attachments onto the record.

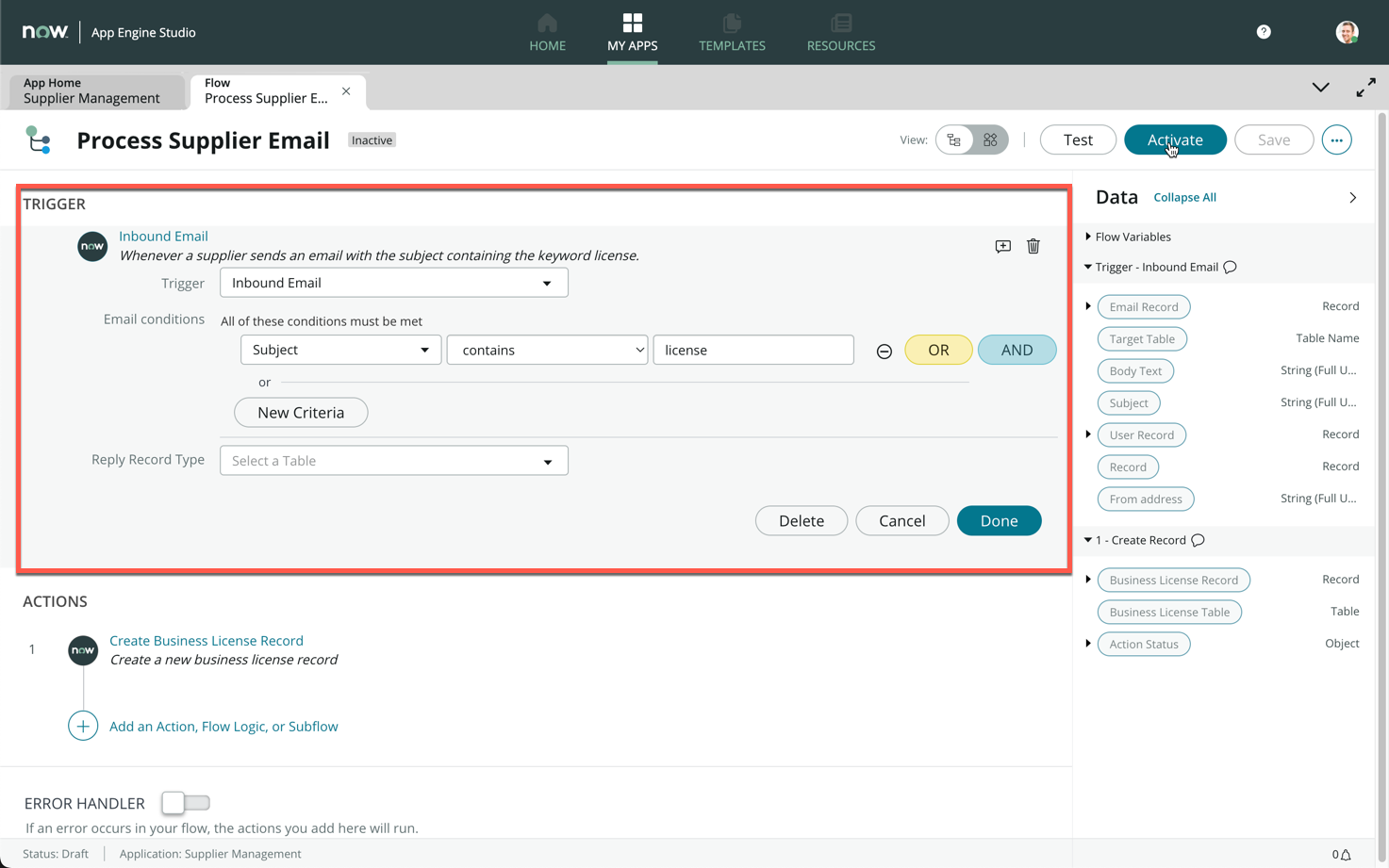

5. Expand the Trigger condition by clicking Inbound Email



6. Examine and understand the email condition that will trigger the flow (Whenever a new email is received with its subject containing the keyword “license”)

7. The first step of the flow will create a new Business License record

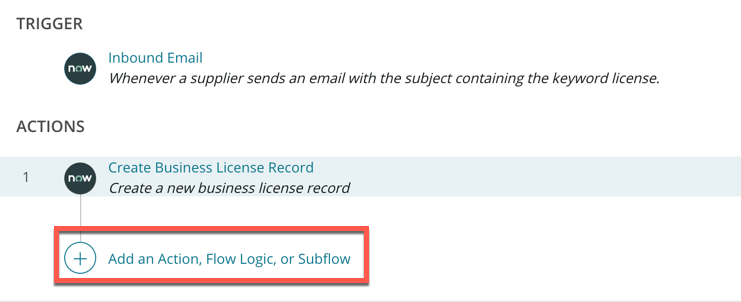

8. Click Add an Action, Flow Logic, or Subflow

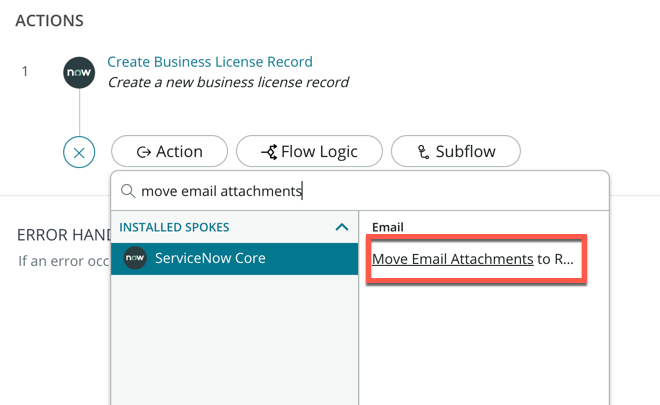

9. Click Action, then search Move email attachments

10. Click Move email attachments to record

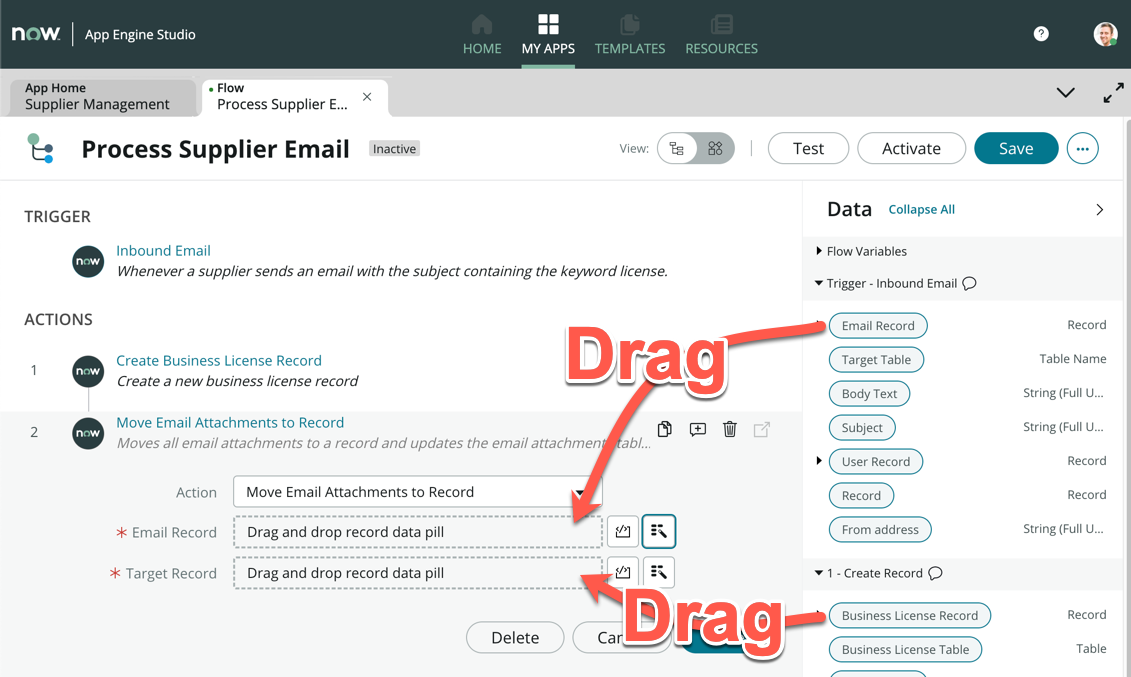

11. Drag and drop the Email Record data pill from the right data panel onto the Email Record field

12. Drag and drop the Business License Record data pill from the right data panel onto the Target Record field

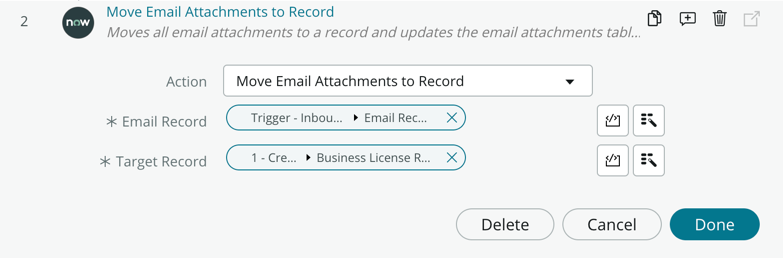

13. The action step will look like this once completed



14. Click Done

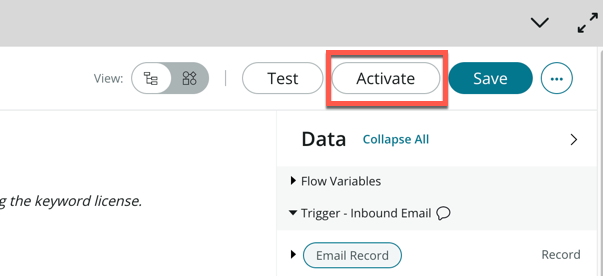

15. Click Activate on the top right of the screen



With this workflow active, any time a new email is received with the keyword license, it would automatically transfer any attachments in the email to a new business license record that is created.

Processing the attachment via Document Intelligence

The second part walks through the processing of the business license using Document Intelligence

Note: These lab instances are not enabled to connect to ServiceNow training servers for AI/ML, hence the actual training of the document intelligence models has been pre-processed with trained data. This section is meant to simulate how document intelligence would function in a production ready ServiceNow instance with AI/ML training servers connected.

1. Navigate back to the main ServiceNow UI

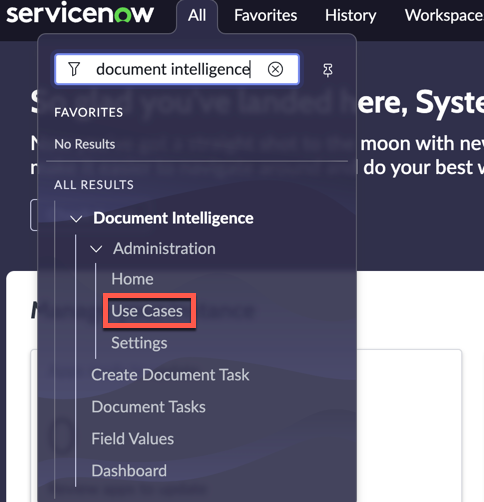

2. Under All, search Document Intelligence, then click Use Cases

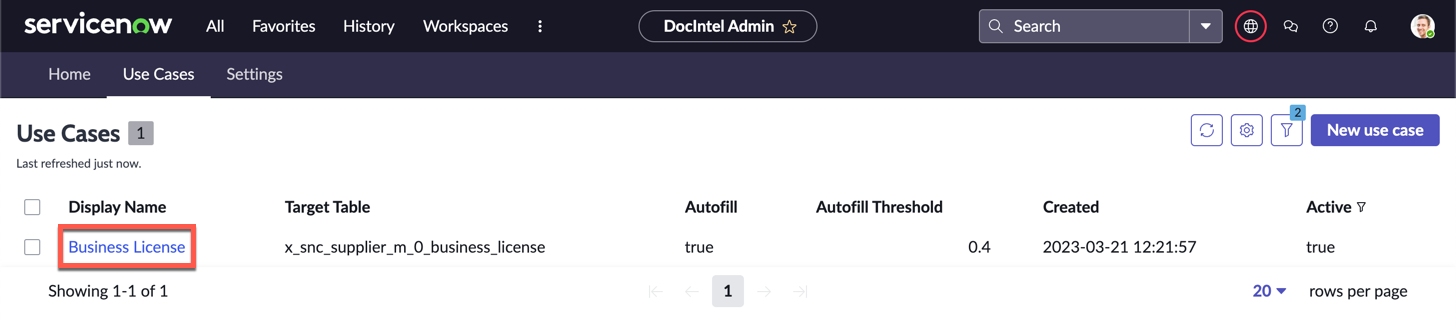

3. In the list view, click Business License

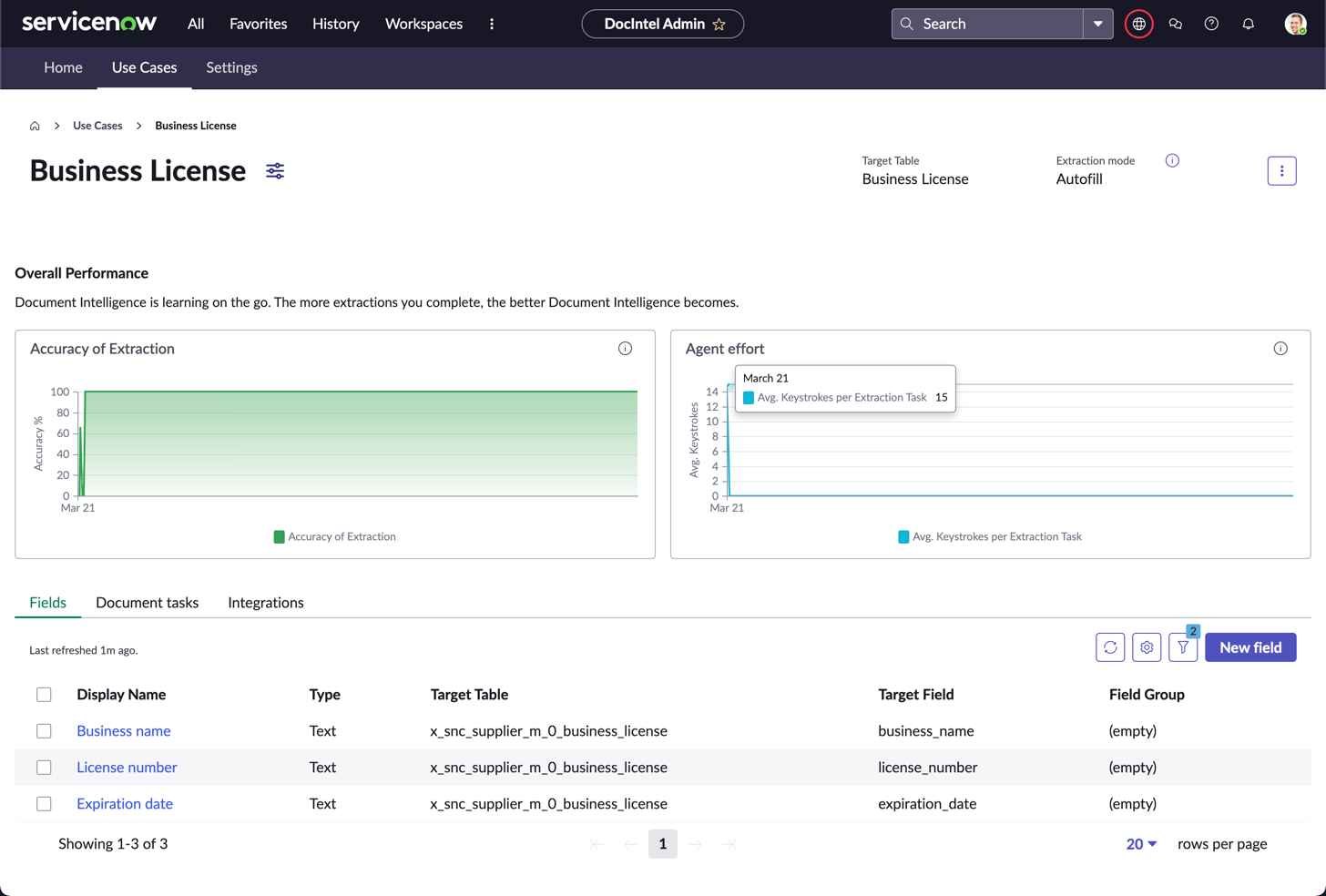

4. If this is your first time using Document Intelligence, here is a quick explanation of the major components you see.



   • Accuracy of Extraction: The Accuracy of Extraction widget shows the average extraction accuracy per time period for the selected use case. Accuracy is defined as the number of times that the AI’s top recommendation is the correct answer.
   • Agent effort: The Agent effort widget shows the number of keystrokes that your agents need perform to extract all field values for a document task. This measurement is an average per document task.
   • Fields: Each field represents a single piece of information to extract from a document
   • Document task: A document processing activity. Includes the information that you want to extract from the document or documents.
   • Integrations: Integration to trigger document task processing or value extraction. Integrations can be used to quickly set up flows with other applications.

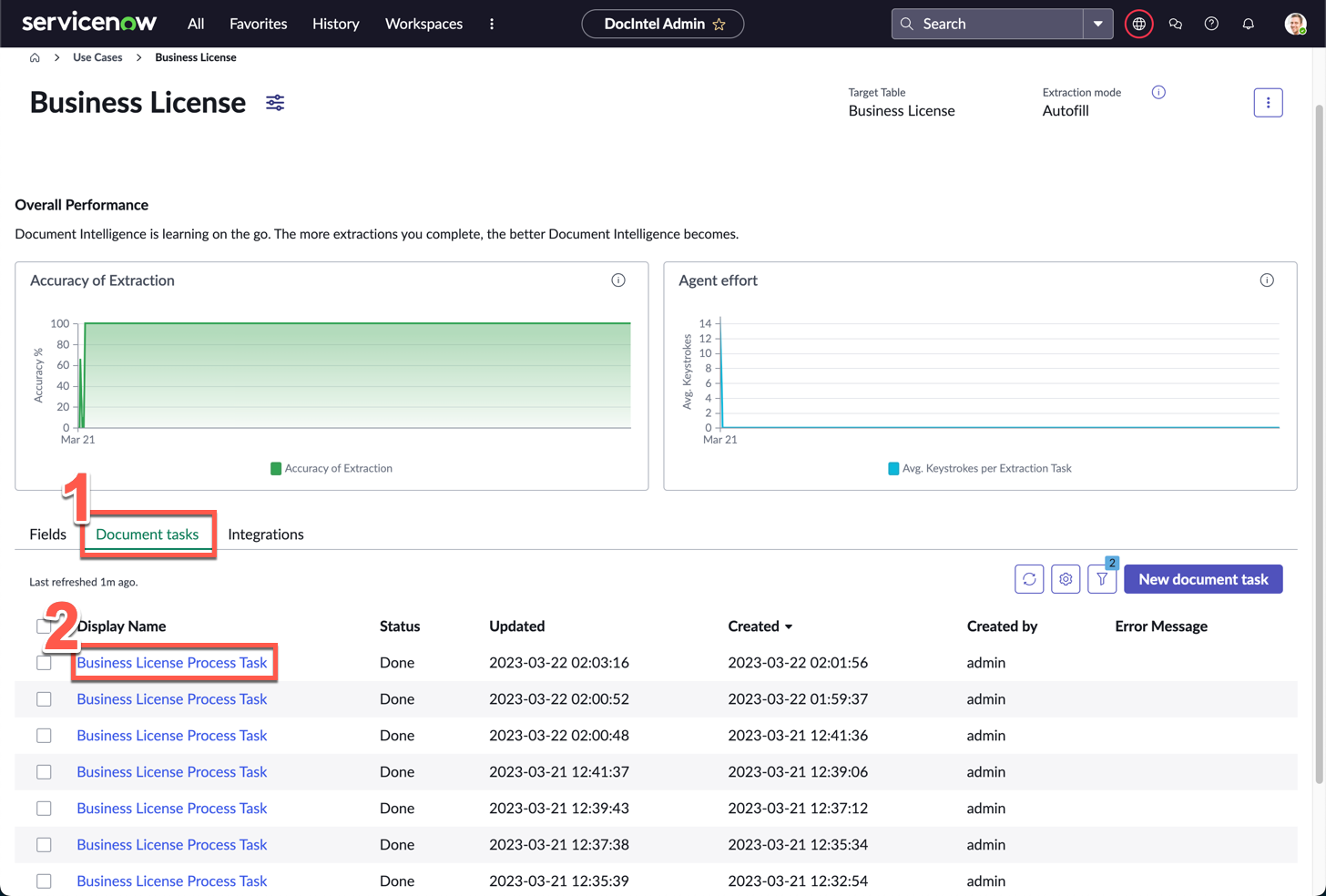

5. Click the Document Tasks tab (1)

   The list of document tasks were what was previously used to train this use case model via ServiceNow’s AI/ML training servers. In the context of this lab, the training results were manually imported for your usage and understanding.

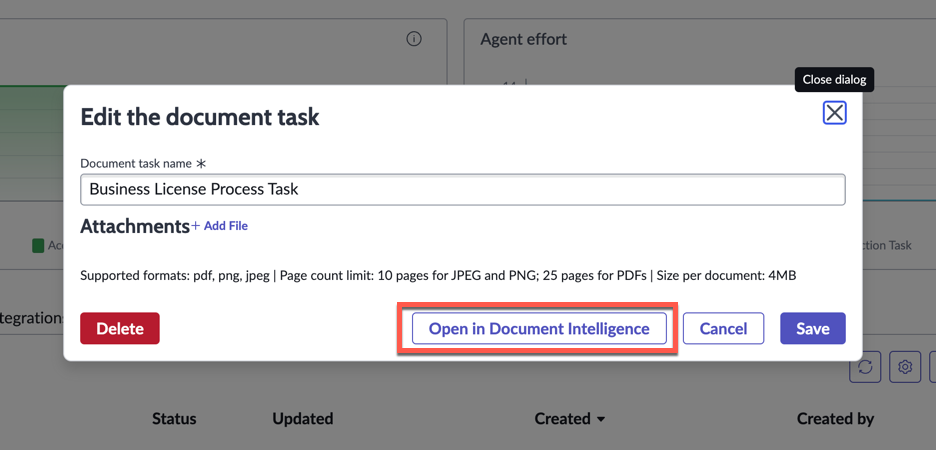

6. Click the first record (2) to open the Edit the document Task modal



7. On the pop-up modal, click Open in Document Intelligence

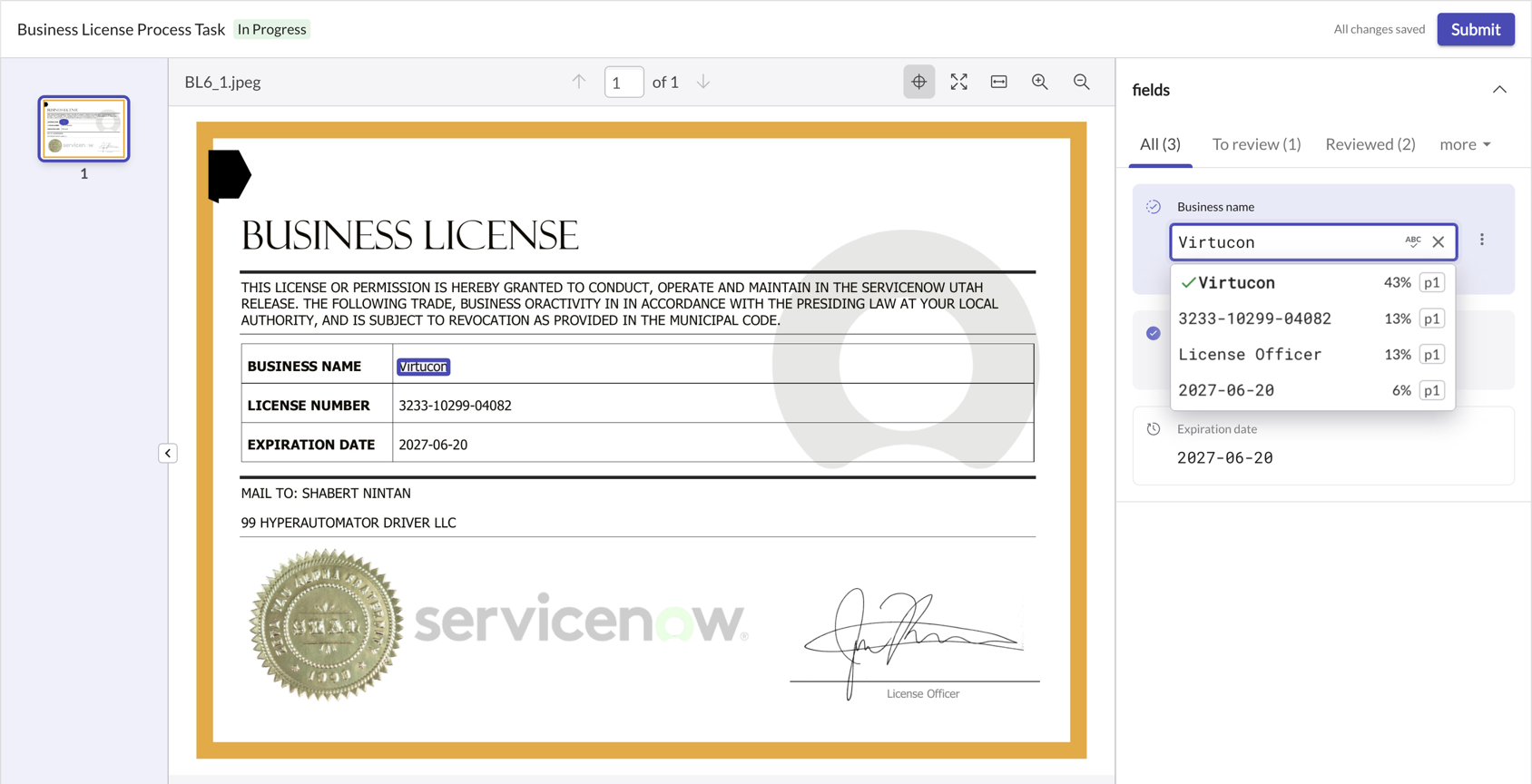

8. A new tab will open, with the Document Intelligence Workspace loaded

   The Document Intelligence Workspace is used for field extraction, searching for recommendations, flagging fields, and identifying missing fields to complete document processing.

9. On the right panel, expand the Fields section and click on any field (these are the same 3 fields you saw in the Document Intelligence use case page on the Fields related list)



10. Notice how there is a percentage score next to each choice in the list. That is the prediction confidence of the extracted value

11. Hover on a few other choices in the list and see what is being picked up on the Business License image

    (Optional) Enter any word you see from the business license image, and hover on it under the list. This is how you would manually train the AI model, and would be part of the data set once this document in submitted by clicking the button on the top right.

12. Close this browser tab without submitting, you should be on the Business License browser tab

13. If the modal is open, close it

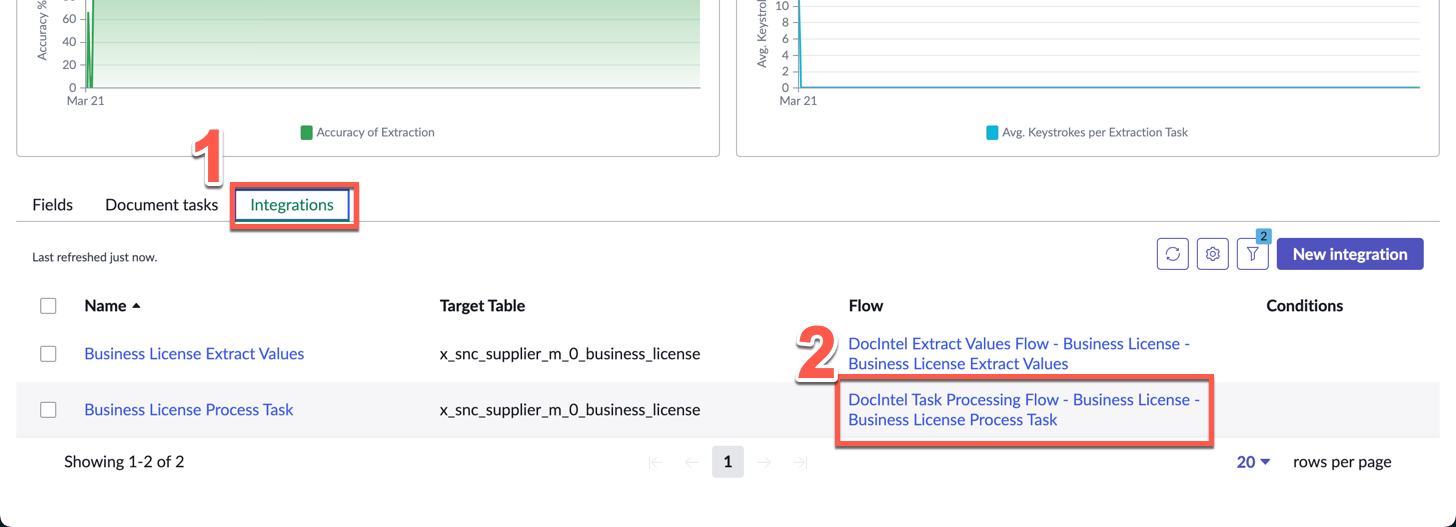

14. Click the Integrations tab (1)

15. There are two flows here that need to be created in order to process the document and write the fields to our Business License record: Process Task and Extract Values

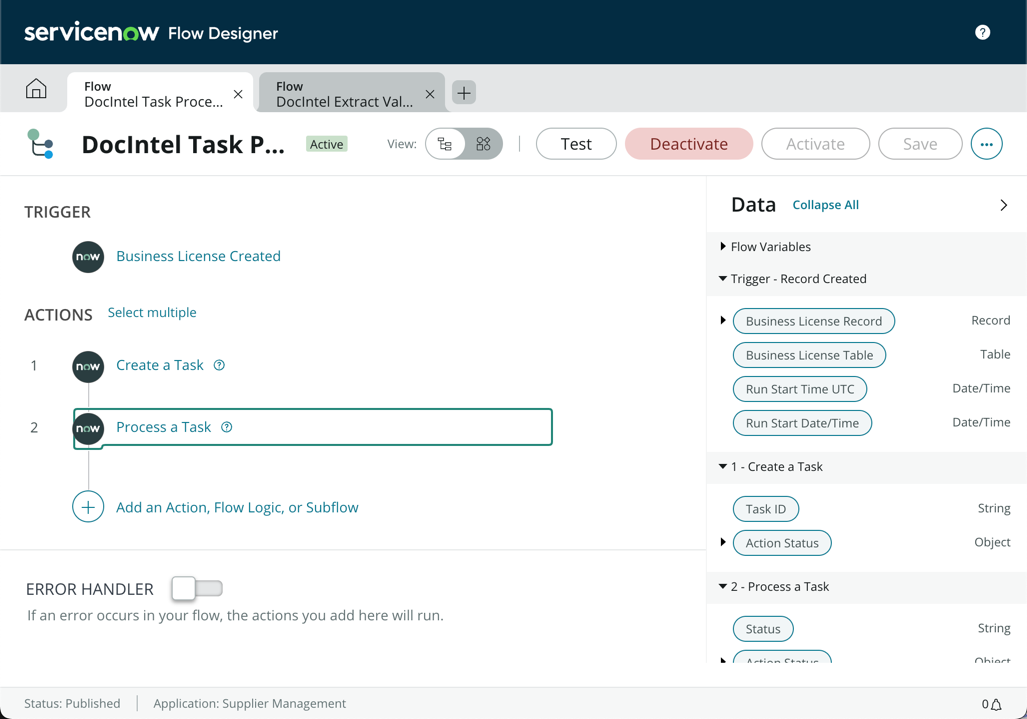

16. Click DocIntel Task Processing Flow - Business License - Business License Process Task (2)



17. A new tab will open with Flow Designer

18. Take a moment to understand what this flow does

    Explanation: Whenever a Business License record is created, it will create a Document Intelligence task to process the attachments against the record. If you recall in the first half of this exercise, the supplier’s inbound email containing the attachment of the business license will then trigger this flow, dynamically processing these tasks everytime an email is received.



19. Close the browser tab and ensure you are back on the Business License use case screen

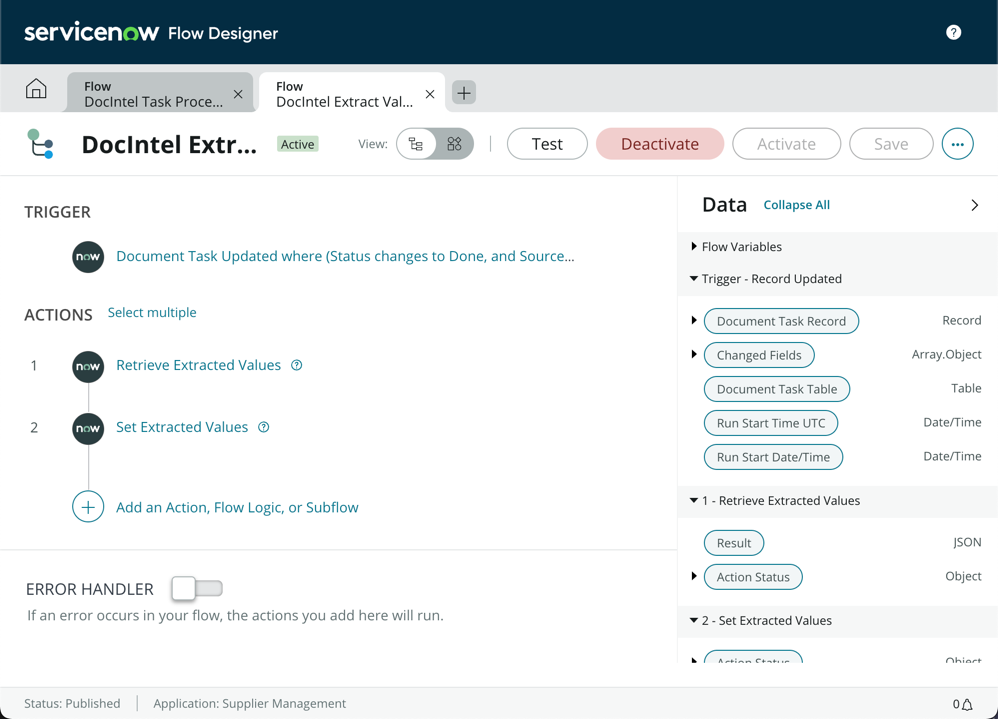

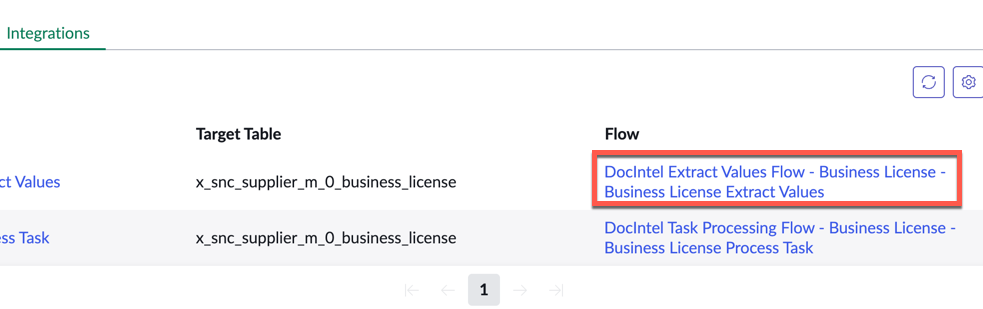

20. This time, click the DocIntel Extract Values Flow - Business License - Business License Extract Values flow



21. On this flow, are you able to decipher what it does on your own? (Hint: It is triggered after the Process Task flow)



22. Close the browser tab and retun to the Business License use case screen

Well done! In this exercise, you have automated the incoming supplier business license records by creating an email flow to process the email and extract the attachments, and then understand how the attachment will be automatically processed by Document Intelligence. This will go a long way in saving the manual effort of the Supplier Management team and allow them to expand to other document types and use cases.

Go ahead and put Document Intelligence in the AI/ML tray of your Hyperautomation Toolbox
